 Bomb FZ 3/4

Bomba FZ 3/4"
Appropriate for well above of 8 “(200mm).

0 - 1.600 L/h
10m - 1.300 L/h
25m - 1.100 L/h
40m - 600 L/h
50m - 350 L/h
65 m - 100 L/h

Recommended
Not recommended

..............................................................................................................
FAZAGUA is a quality champion submerged water pump, thereof, it has been the most popular pump in the north and northeast of Brazil.
Technical Characteristics
Electric chain: : 110 ou 220 volts single-phase
Frequency: 60 cycles
Average consumption: 320 wats / 5.A
Weight: 6,00Kg
Height: 34cm |
|

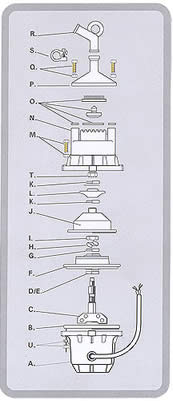

R - Support curve
S - Cramp
Q - Superior screw
P - Exit
O - Complete valve
N - Carcass
M - Inferior screw
T - Nut of the windy one
K - Washer of the windy one
L - Cushioning nut
J - Canopla
L - Against cushioning nut
H - Pressure washer
G - Smooth washer
F - Shock absorber (rubber)
D/E - Washer regulation
C - Martelete
B - Blocking joint
U - Inferior screw nut
A - Mug
